VSf TV MIX

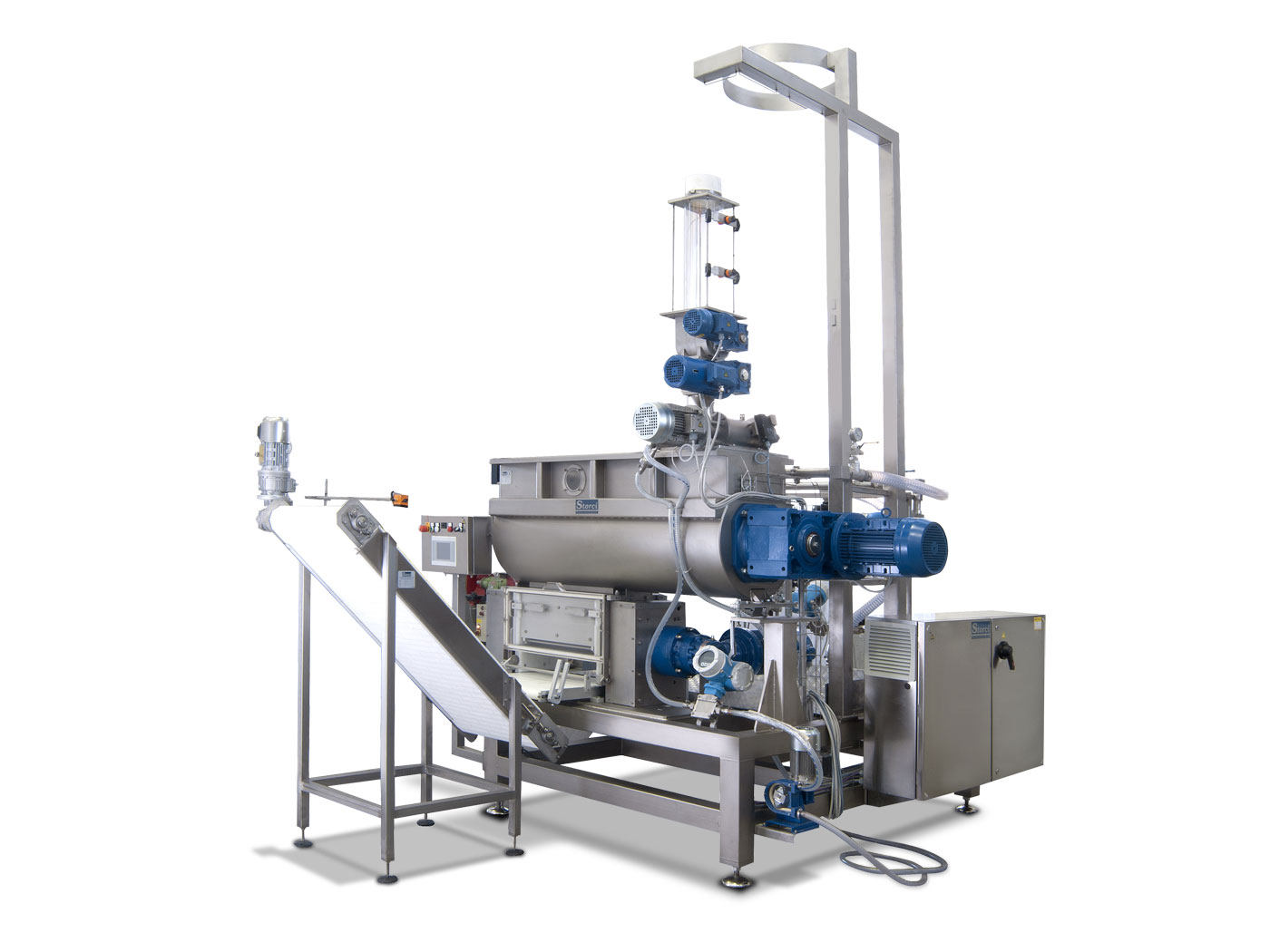

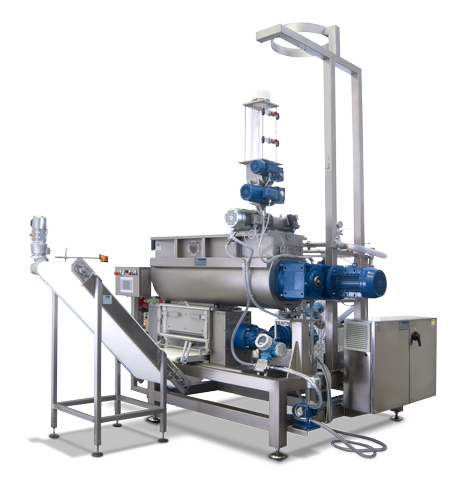

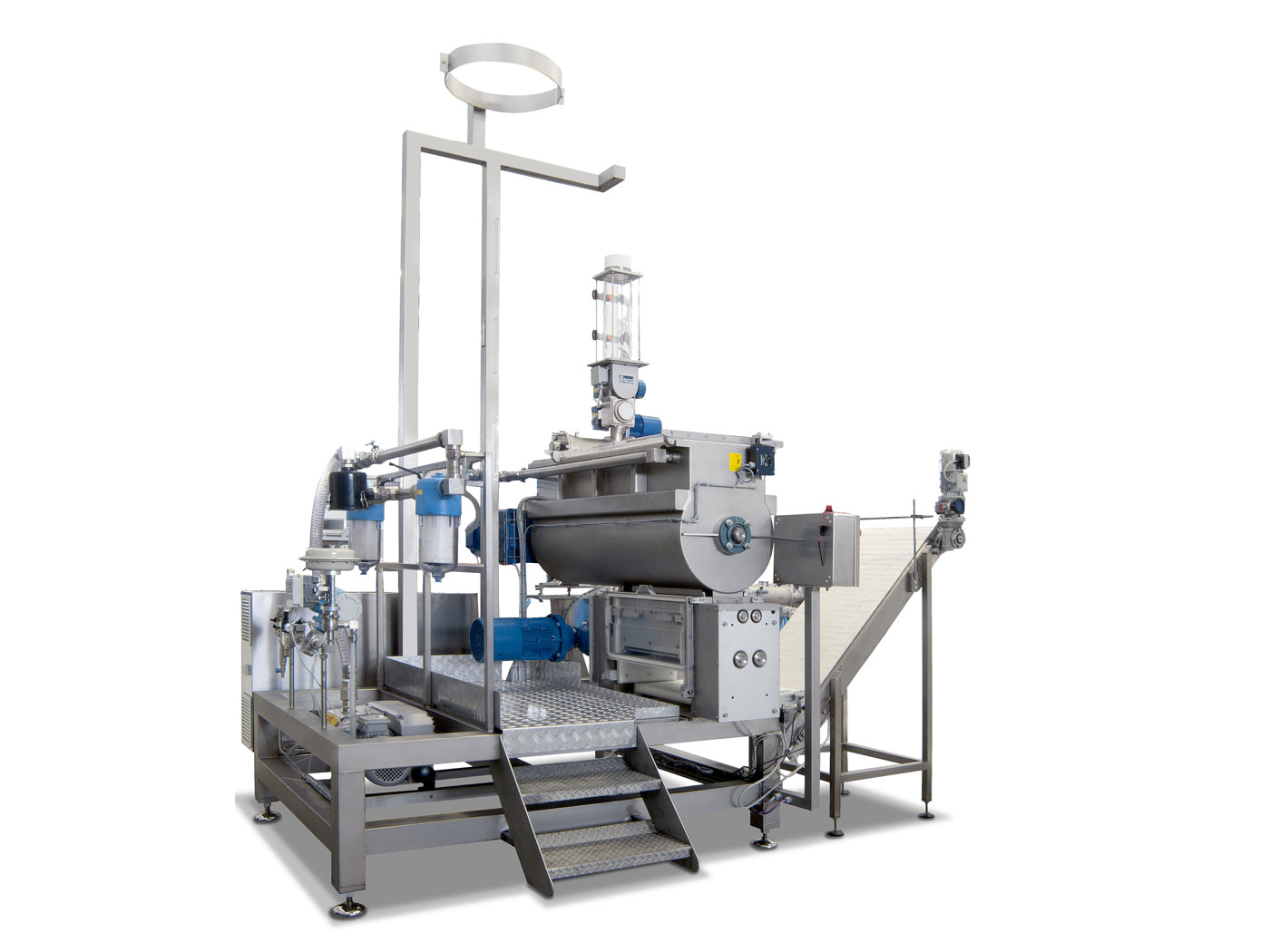

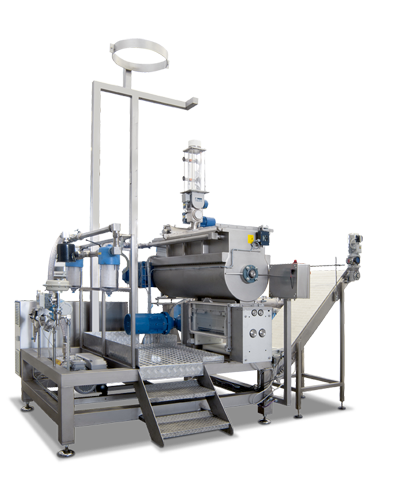

Automatic absolute vacuum dough sheeter in stainless steel for producing pasta sheets. Automatic production which does not require the fixed presence of an operator. Equipped with a Premix® dough preparation unit complete with automatic dosing of ingredients. Laminated sheet production for filled pasta.






Key features



  • The “VSF TV/MIX” vacuum dough sheeter represents a revolutionary innovation
  • Fresh production capacity: approximately 250-500 kg/h
  • Equipped with a dough preparation unit complete with automatic dosing and Premix® to make this machine fully autonomous

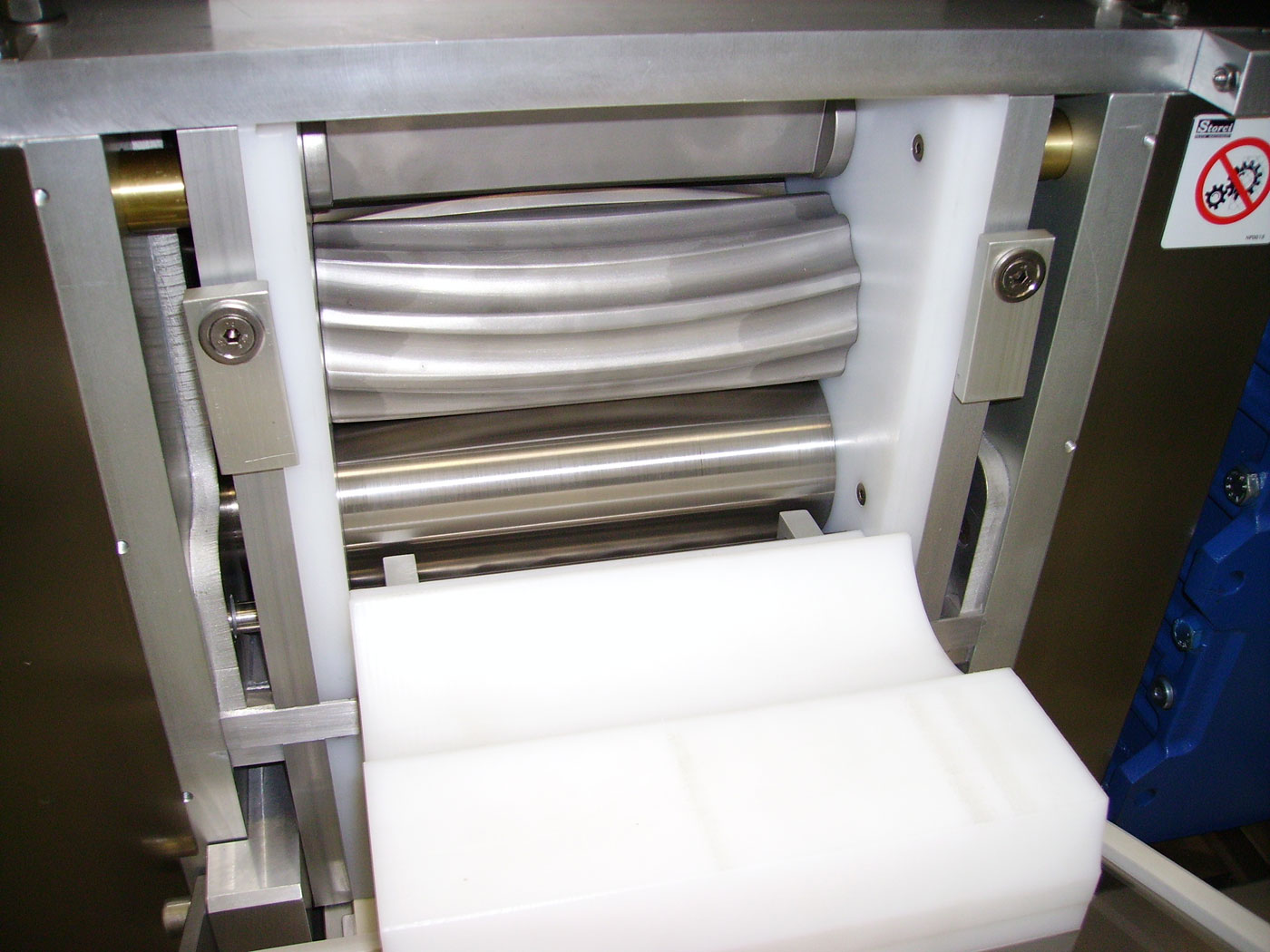

  • Two kneading rollers and one pair of laminating rollers with separate motor drive
  • Totally reliable, maximum pasta quality and extremely easy to clean




Main technical features



VSF TV MIX









A  revolutionary innovation



  • Ideal for producing filled pasta and pasta sheets of medium humidity.
  • Volumetric flour doser
  • Electronically controlled dosing system for liquid ingredients.
  • Vacuum kneading tank with filter pump and vacuum gauge.
  • Bolt-free kneading paddles for easy cleaning
  • All parts in contact with the dough made from stainless steel and non-toxic polymer.
  • Pasta sheet conveyor belt.
  • PLC with touch screen.




Advantages





The VSF TV/MIX dough sheeter is designed to produce pasta sheets in the total absence of air to obtain (based on the use of the same raw materials) a product which is:



  • A more intense shade of yellow
  • More elastic
  • More compact
  • Better at withstanding cooking




Production Table


  VSF TV/MIX 250 VSF TV/MIX 540
Sheet width S (mm) 250 540
Fresh production(kg/h) 250 500
Installed power (kW) 8 13
Weight (kg) 800 1000
Dimensions LxPxH (mm) 164x129x284 193x129x284

Dimension and technical data are not binding. Storci S.p.A. reserves the right to modify them without notice. Note: the data provided is purely indicative and not binding as it may be subject to the variability of products and the line in which units are installed.

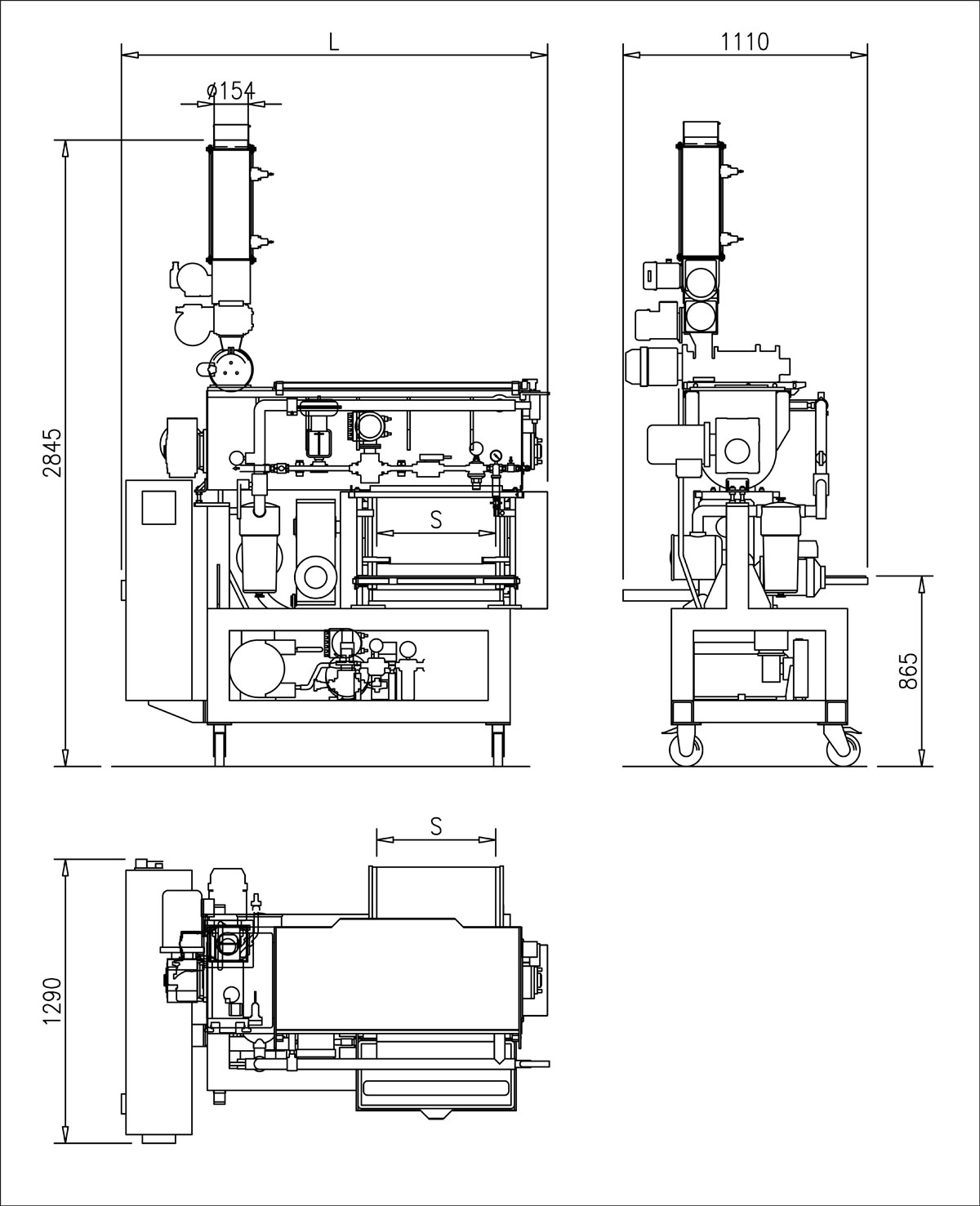

Dimensions


 VSF TV/MIX






Technical sheets
To open or download and print a file click on it
