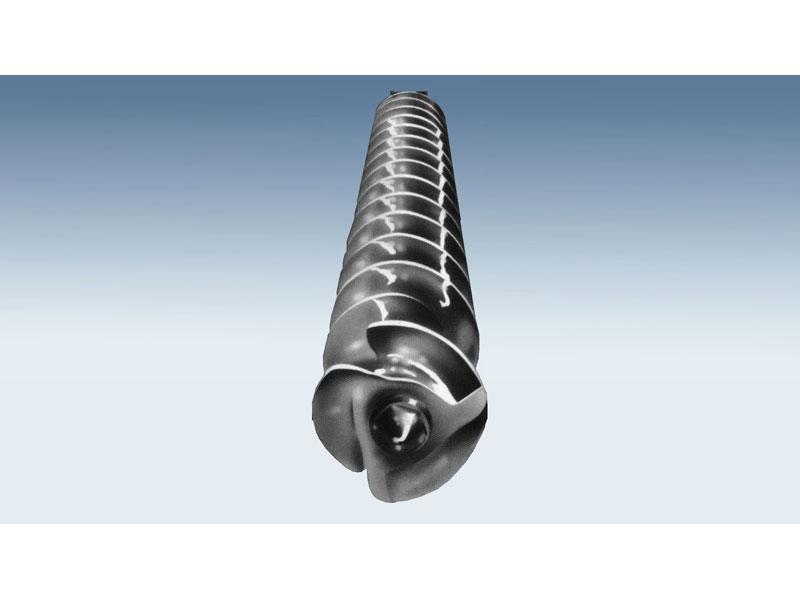

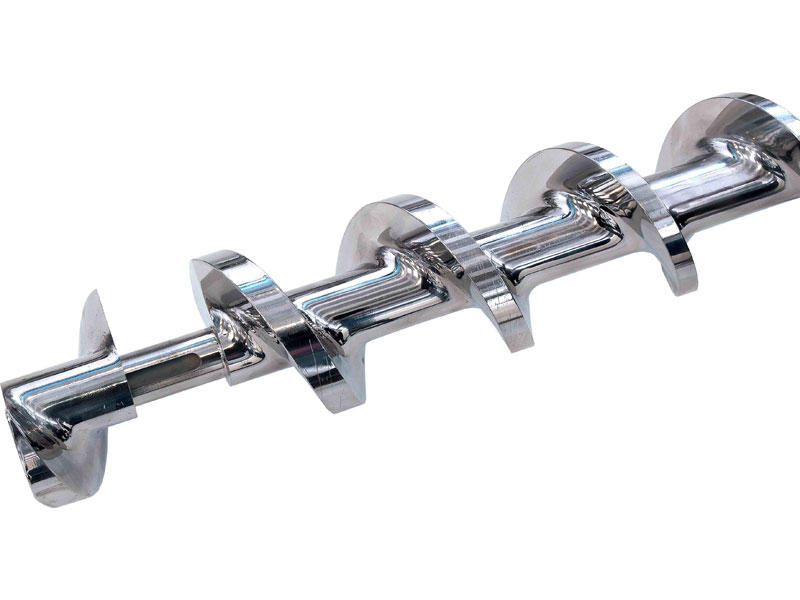

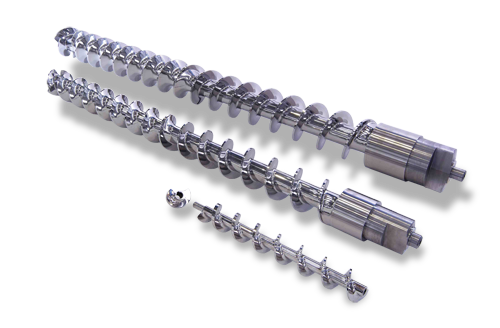

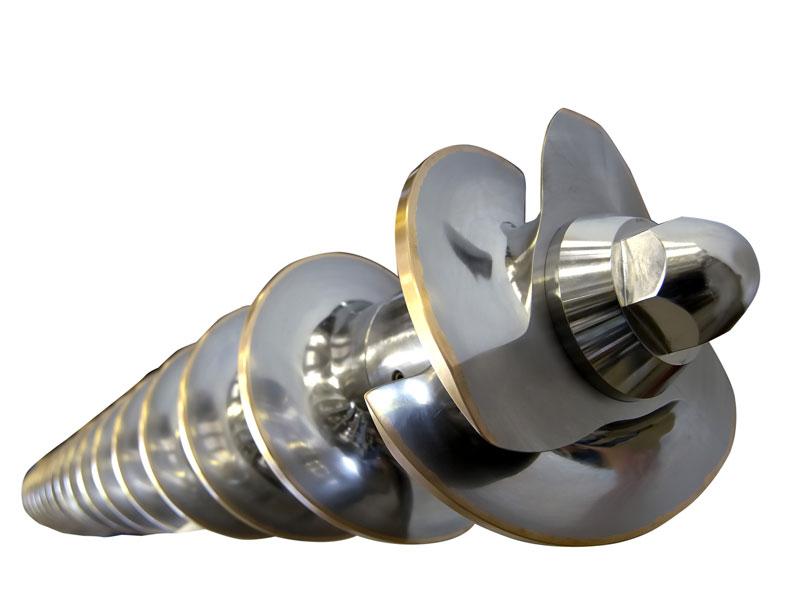

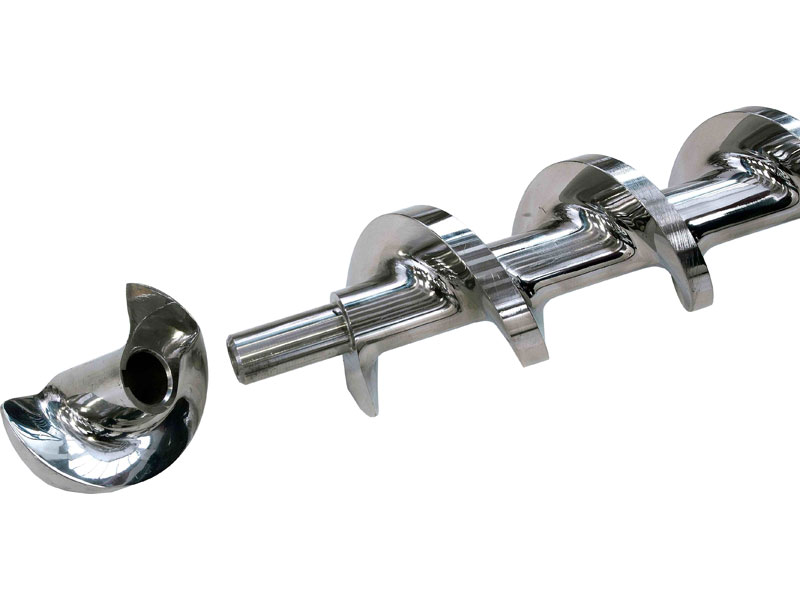

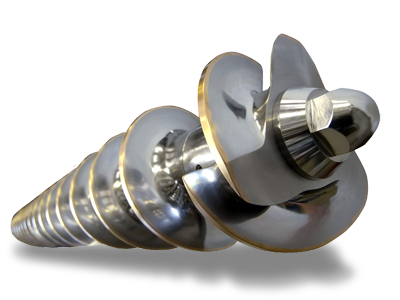

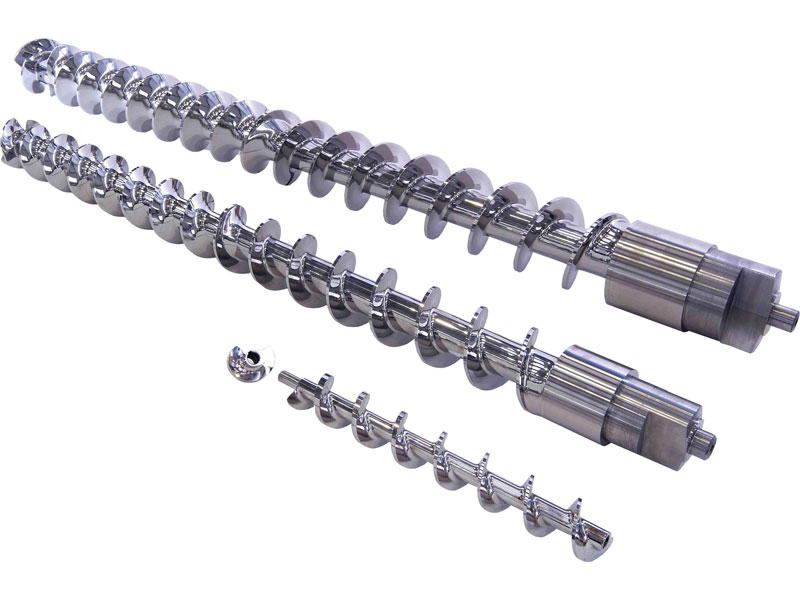

Compression screw

The compression stage is one of the most important technological stages in determining the end quality of the pasta. Minimizing the increase in temperature during the compression stage is fundamental for ensuring excellent firmness of the pasta during cooking.
The compression unit is made up of one or more worm screws and one or more grooved cylinders. We have been working on the profile of worm screws and the effect this can have on dough quality for almost 30 years. In fact, our latest-generation worm screws incorporate a high performance profile and a conical core in the compression zone which make it possible to reduce the temperature of the dough, keeping the gluten quality high which consequently increases firmness of the pasta during cooking.






Key features



  • Built from tempered, mirror finish stainless steel with excellent surface smoothness
  • High-performance profile for better pasta quality in the compression stage
  • Higher production and lower energy consumption




Compression groups. Quality and savings thanks to proprietary profiles.



Compression groups



Thanks to their state-of-the-art configuration, Storci compression screws enable to get top quality results with a remarkable energy saving.




Compression groups

The best for over 30 years

We have been producing compression screws for over 30 years, for Customers from all over the world, ranging from the artisanal pasta factories in Gragnano to large industrial ones. All these years of research, development and uninterrupted improvements guarantee for unrivalled performances.





-5°C
extrusion temperature
-15%
l'necessary energy
+1.200
installed in the world

Advantages

Our screws guarantee higher production as, based on an equal number of revolutions, productivity can be increased by up to 15% compared to worm screws with a standard profile. Our worm screws permit lower energy consumption as the increase in electrical energy absorption is only 1/3 in relation to the increase in production.





Compression groups

  1. Loading area with great volume cylindrical core
  2. Compacting area with conical core
  3. Compression and final distribution area with cylindrical core

Energy saving and excellent result

For over 30 years we have been working on the screws optimisation and the effect that it has on dough quality. Our latest generation screws can reduce the dough temperature keeping higher the gluten value and consequently increasing the hold up to cooking. The design of our compression screws has been maximised during the years up to reaching a unique quality level. Not only do they respect the mixture guaranteeing a better end result, but they can also reduce the energy waste, giving you back day by day a significant economy saving.









Braibanti's equipment





The high level of technology incorporated into Storci worm screws and cylinders has also been applied to Braibanti compression units, improving efficiency compared to the original components.
We have worked with Braibanti systems for over thirty years and we can supply all spare parts without difficulty; all we need to know is the name of your machine and the year in which it was built.
We have acquired a cognitive map and consequently a far-reaching understanding of these machines acquired over the years; all this makes it possible for us to make high level technological improvements whenever necessary and state that the name Braibanti remains (also thanks to us) a synonym of indestructibility.








Technical sheets
To open or download and print a file click on it
